FALL228 Concrete Hole 3/4″ Wedge Anchor FS876

Categories: ,

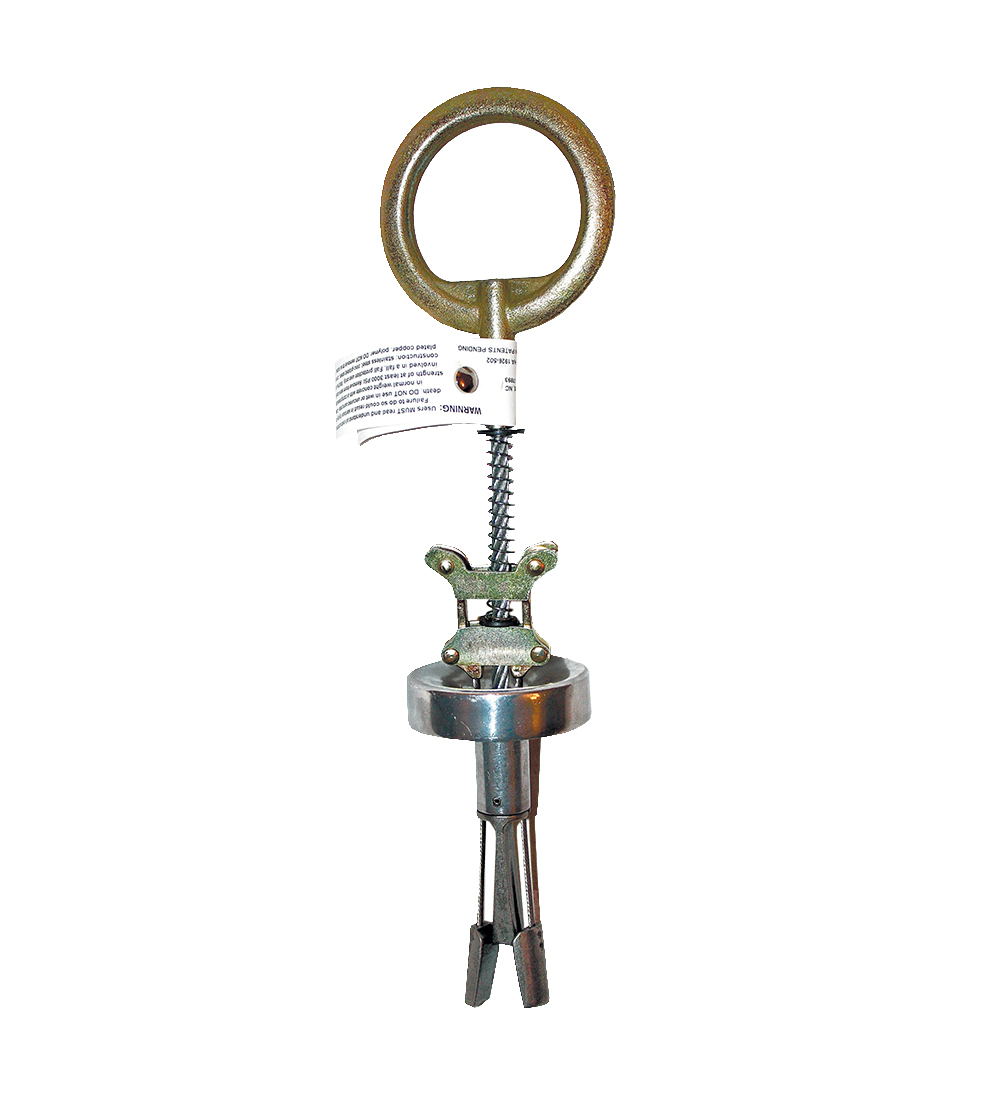

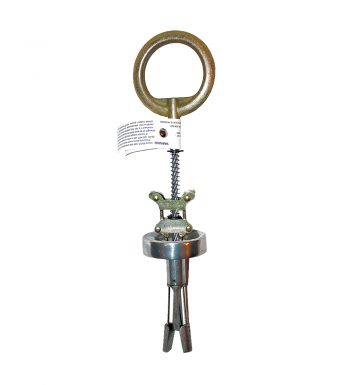

5K Removable Concrete Wedge Anchor

This removable concrete anchor has an exclusive “Easy Button” feature that is sure to boost productivity by providing immediate anchor removal and instant user mobility. The anchor can be set as hard as desired without fear of it getting stuck.

  • Model#: FS876

——————————————————————————————————–

FEATURES

  •  5K rated removable concrete wedge anchor designed for 3/4″ by 3″ hole
  • Incorporates easy trigger for repeated use
  • 5,000 lbs max capacity
  • 10.75″ overall length / Requires 3/4″ hole drilled for placement

Read More

Description

5K Removable Concrete Wedge Anchor

This removable concrete anchor has an exclusive “Easy Button” feature that is sure to boost productivity by providing immediate anchor removal and instant user mobility. The anchor can be set as hard as desired without fear of it getting stuck.

Click Here for Instructional Manual

Click Here for Technical Data Sheet

SPECIFICATIONS

MaterialsSteel body; Stainless steel cable slider; Forged steel eye
Weight0.8 lbs (0.36 kg)
Weight Capacity/Max Working Load310 lbs (140.61 kg)
Length10.75 in (273.05 mm)
Diameter3 in (76.2 mm) outside diameter; 2.25 in (57.15 mm) inside diameter eye
Minimum Breaking Load5,000 lbs – 22.2 kN
Applicable StandardsMeets OSHA 1926-502, ANSI Z359.1, ANSI A10.32
